Tech specs
Brand
SonicWALL
Product Line
SonicWall
Model

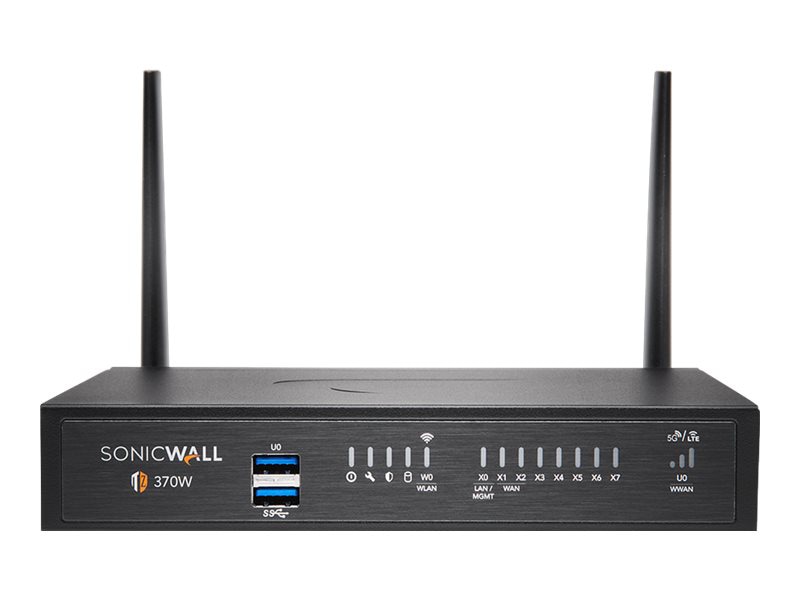

TZ370W
Edition
Essential Edition
Manufacturer
SonicWALL
Compliant Standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11s, IEEE 802.11w
Connectivity Technology
Wired, Wireless
Data Link Protocols
Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Features
3G/4G USB Dongle Support, Airtime Fairness, Anti-spam protection, Antivirus analysis, Band steering, Bandwidth control, Beamforming technology, Bluetooth Low Energy Beaconing, Captive Portal, Common Access Card (CAC) reader support, Content filtering, DDos attack prevention, Dead Peer Detection (DPD), Deep Packet Inspection (DPI), DHCP relay, DHCP server, DoS attack prevention, Dual-stream (2x2), Fast Roaming, Firewall protection, IPSec NAT-Traversal (NAT-T), IPv4 support, IPv6 support, Jumbo Frames support, NAT support, NetFlow, PAT support, Port mirroring, Quality of Service (QoS), Rogue access point detection, SD-WAN support, Single Sign-On (SSO) support, Stateful Packet Inspection (SPI), VLAN support, VLAN trunking, VPN support, Wi-Fi Multimedia (WMM) support, Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS)
Form Factor
Desktop
Network Band
2.4 GHz, 5 GHz
Network Standard
DHCP, ICMP/IP, IPSec, L2TP, PPPoE, PPTP, TCP/IP, UDP/IP
Product Type
Security appliance
Remote Management
CLI, HTTP, HTTPS, SNMP 2, SNMP 3, SSH
Routing Protocol
BGP, OSPF, Policy-based routing (PBR), RIP-1, RIP-2, Static IP routing
Status Indicators
Link/activity, Power, Secure, SSD activity, Test mode, Wireless
Wireless LAN
802.11a/b/g/n/ac Wave 2
Interface Provided
1 x console - RJ-45, 2 x 1000Base-T - RJ-45 (WAN), 2 x USB 3.0 - Type A, 6 x 1000Base-T - RJ-45
Frequency
50/60 hertz
Power Consumption Operational
18.91 watt
Power Provided
36 watt
Software Type
SonicWall Essential Protection Service Suite (3 years)
Antenna Form Factor
External detachable
Encryption
128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, PEAP, SHA-1, TKIP, Triple DES, TTLS, WEP, WPA, WPA2
Line Coding Format
DSSS, OFDM
Max Operating Temperature
104 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
MTBF
27.1 Year
Operating Humidity
5 - 95% (non-condensing)
Authentication Method
LDAP, RADIUS, XAUTH authentication
Capacity
DPI connections: 200000, DPI SSL connections: 30000, IPSec VPN clients: 5 (maximum 200), Manageable access points: 16, Single Sign-On (SSO) users: 1000, SPI connections: 900000, SSL VPN licenses: 2 (maximum 100), Virtual interfaces (VLANs): 128, VPN tunnels (site-to-site): 100
Device Type
External power adapter
Packaged Quantity
1
Service Activation
No
VoIP
Yes
VoIP Protocols
H.323 v1, H.323 v2, H.323 v3, H.323 v4, H.323 v5, SIP
Network Device
Anti-malware throughput: 1 Gbps, Application throughput: 1.5 Gbps, Connection rate: 9000 connections per second, Firewall throughput: 3 Gbps, IPS throughput: 1.5 Gbps, Threat prevention throughput: 1 Gbps, TLS/SSL inspection and decryption throughput: 500 Mbps, VPN throughput (IPSec): 1.3 Gbps
Height
1.4 inch
Weight
29.98 ounce
Width
7.5 inch
Depth
5.3 inch
Color Category
Black
Compliant Standards
CB, CoC, Common Criteria, cUL, EMC, FCC Class B certified, FIPS 140-2 Level 2, IC, ICES Class B, ICSA Antivirus, ICSA Firewall certified, LVD, MIC, R&TTE, RCM, REACH, RoHS, TELEC, TUV GS, UL, VCCI Class B, WEEE
ENERGY STAR Certified
No
EPEAT Compliant
No
TCO Certified
No
