Tech specs
Brand
Sophos
Product Line
Sophos XG
Model

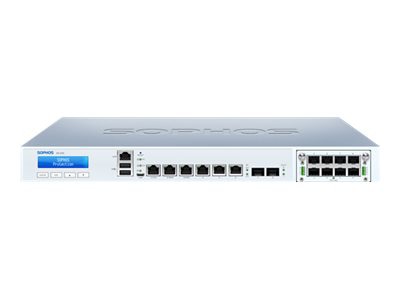

230 Rev. 2
Manufacturer
Sophos Appliances
Port Expansion Hard Drive Type
SSD
Installed Quantity
1
Connectivity Technology
Wired
Data Link Protocols
Ethernet, Fast Ethernet, Gigabit Ethernet
Features
Firewall protection, Intrusion Prevention System (IPS), Modular design, Two bypass interface pairs, VPN support, Web threat protection
Form Factor
Rack-mountable
Product Type
Security appliance
Expansion Slots
1 (total) / 1 (free) x expansion slot
Interface Provided
1 x HDMI, 1 x micro-USB, 1 x serial - RJ-45, 2 x 1000Base-X - SFP (mini-GBIC), 3 x USB 3.0 - Type A, 6 x 1000Base-T - RJ-45
Frequency
50/60 hertz
Nominal Voltage
AC 120/230 V
Power Consumption Operational
41 watt
Built-in Devices
Status LCD
Max Operating Temperature
104 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
Operating Humidity
10 - 90% (non-condensing)
Capacity
Concurrent connections: 8200000, Maximum number of users: unlimited, New connections per second: 140000
Country
United States
Device Type
Internal power supply
Packaged Quantity
1
Network Device
Antivirus throughput (proxy): 2.8 Gbps, Firewall throughput (IMIX): 6.8 Gbps, Firewall throughput: 20 Gbps, Intrusion prevention throughput: 4.2 Gbps, NGFW throughput: 3 Gbps, VPN throughput: 1.7 Gbps
Included Accessories
Rack mount kit
Height
1.7 inch
Height (Rack Units)
1
Weight
11.46 lbs
Width
17.2 inch
Depth
13.6 inch
Color Category
White
Compliant Standards
BIS, CB, CCC, FCC Class A certified, ISED, KCC, MSIP, RCM, UL, VCCI
