Tech specs
Brand
Verkada
Product Line
Verkada
Model

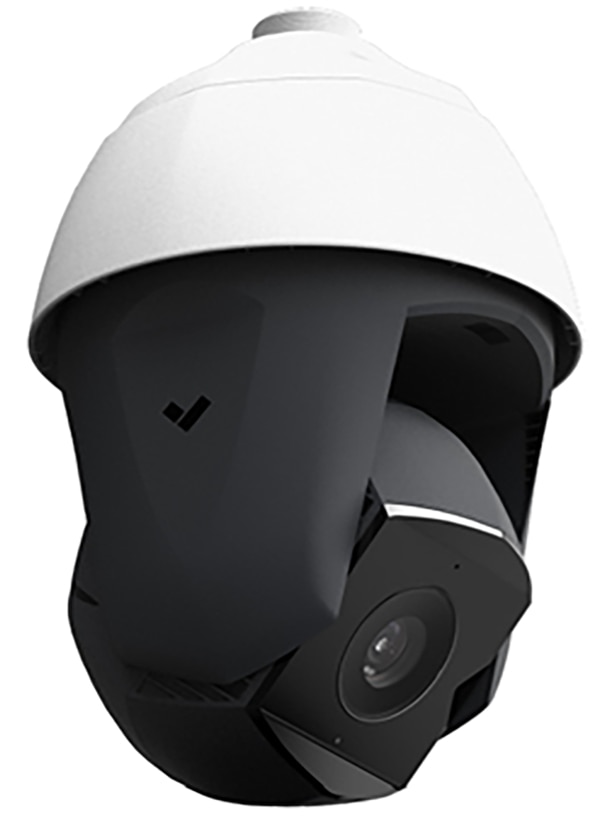

CP52-E
Manufacturer
Verkada Hardware
Flash Memory Installed
512 GB
Memory Cards Supported
microSD Card, microSDXC Card
Network Interface
Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols
RTSP
Connectivity Technology
Wired
Ports
LAN/power - RJ-45
Image Sensor Size
1/2.8"
Image Sensor Type
PS CMOS
Tilt
220
Camera Mechanical Design
Pan / tilt / zoom
Digital Video Capture Resolution
2688 x 1944
Max Frame Rate
24 frames per second
Max Video Resolution
2688 x 1944
Motion Detection
Yes
Panning Range (degree)
360
Shutter Speed (Max)
1/10000 second (time unit)
Shutter Speed (Min)
1/30 second (time unit)
Camera Type
Network surveillance camera
Night Vision
Yes
Low Voltage Power
PoE ++
Angular Field of View (D, Min, Degree)
66
Angular Field of View (H, Min, Degree)
55
Angular Field of View (V, Min, Degree)
42
Auto Iris Control
DC
Camera Iris
Fixed iris
Focal Length Control
Vari-focal
Form Factor
Turret
Indoor/Outdoor
Outdoor
Infrared Distance
328 ft
Infrared LEDs
Yes
Lens Aperture
F/1.3-4.8
Max Focal Length
148.15 millimetre
Max Operating Temperature
122 degree Fahrenheit
Min Focal Length
5.2 millimetre
Min Operating Temperature
-40 degree Fahrenheit
Operating Humidity
90%
Optical Zoom
28
Protection
Dustproof / weatherproof / vandal-proof
Sensor Pixels Total (H)
2688
Sensor Pixels Total (V)
1944
Sensor Size (metric)
9.1 mm (1/2.8")
Total Pixels
5,000,000 pixels
Video Formats
H.264, H.265
Video Input
Color
Features
24/7 protection, Adaptive quality recording, Ambarella CV22S66 CPU, Auto tracking, Cloud recording, Face Recognition, Firmware upgradable, Heat Map, Human and vehicle filtering, Infrared cut filter, LED Indicator, License plate recognition (LPR), People analytics, People counting, Person Detection, Progressive scanning, Vehicle analytics, Vehicle Detection, Wide Dynamic Range (WDR)
Packaged Quantity
1
Included Accessories
Pendant cap, Rubber cap, T30 security L-wrench
Height
16 inch
Weight
15.59 lbs
Width
10.1 inch
Depth
10.1 inch
Color Category
Black, White
Compliant Standards
CB, FCC, IC, IEEE 802.3at Type 2, IEEE 802.3bt Type 3, IK10, IP66, RCM, UKCA, UL, VCCI
Service & Support Details
Limited warranty - 5 years
Limited Warranty
5 Year
