Tech specs
Brand
WD
Product Line

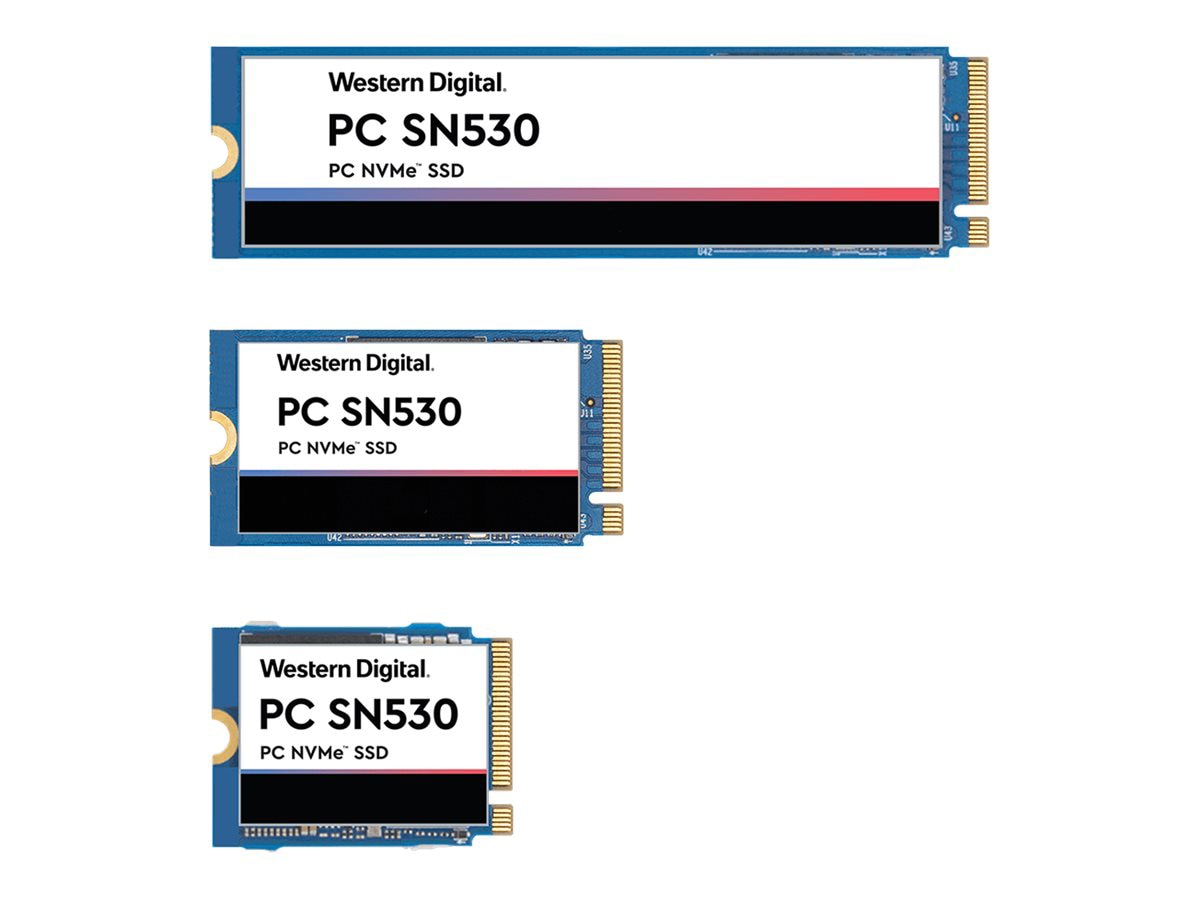

WD PC SN530 NVMe SSD
Model
SDBPNPZ-256G
Manufacturer
SanDisk
Endurance Type
200 TB
Form Factor (Short)
M.2
Form Factor (Short) (metric)
M.2
Hard Drive Capacity
256 GB
Hard Drive Features
96-layer 3D NAND technology, NVM Express (NVMe) 1.4
Hard Drive Type
Internal hard drive
HD Interface
PCI Express 3.0 x4 (NVMe)
Max 4KB Random Read
170000 IOPS
Max Internal Data Transfer Rate
2400 MBps
Max Write Transfer Rate
950 MBps
Maximum 4KB Random Write
120000 IOPS
Storage Interface
PCI Express 3.0 x4 (NVMe)
Interface Provided
1 x PCI Express 3.0 x4 (NVMe) - M.2 Card
Power Consumption
20 mW (low power active), 5 mW (sleep), 75 mW (active)
Compatible Bay
M.2 2280
Hard Drive Form Factor
M.2 2280
Hard Drive Form Factor (metric)
M.2 2280
Max Operating Temperature
158 degree Fahrenheit
Max Storage Temperature
185 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
Min Storage Temperature
-67 degree Fahrenheit
MTBF
1,750,000 Hours
Shock Acceleration (Operating)
1500 gram
Shock Duration (Operating)
0.5 ms half-sine
Vibration Acceleration (Non-operating)
4.9 gram
Vibration Acceleration (Operating)
5 gram
Vibration Frequency Range (Non-operating)
7-800 Hz
Vibration Frequency Range (Operating)
10-2000 Hz
Packaged Quantity
1
Product Type
Solid State Drive
Height
0.1 inch
Weight
0.26 ounce
Width
0.9 inch
Depth
3.1 inch
Compliant Standards
BSMI, CAN ICES-3 Class B, FCC, KCC, Morocco, NMB-3 Class B, RCM, TUV, UL, VCCI
Service & Support Details
Limited warranty - 5 years
Limited Warranty
5-year warranty
Compatibility Specs
Intel Next Unit of Computing 12 Pro Kit - NUC12WSHi3, 12 Pro Kit - NUC12WSHv7, 12 Pro Kit - NUC12WSKi3, 12 Pro Kit - NUC12WSKi5, 12 Pro Mini PC - NUC12WSKi5
