Tech specs
Brand
Yealink
Product Line
Yealink
Model
UVC86
Manufacturer
Yealink
Host Interface
USB 3.0
Connectivity Technology
Wired
Ports
Audio line in, Microphone - RJ-45, USB 2.0 - 4 pin USB Type A, USB 3.0 - 9 pin USB Type B
Tilt
-90 to +40
Touchscreen
No
Audio Support
Yes
Camera Mechanical Design
Pan / tilt / zoom
Digital Video Capture Resolution
1024 x 576, 1280 x 720, 1920 x 1080, 2560 x 1440, 3840 x 2160, 800 x 448, 960 x 540
Digital Zoom
1.7
Max Frame Rate
40 frames per second
Max Video Resolution
3840 x 2160
Panning Range (degree)
-100 to +100
Shutter Speed (Max)
1/10000 second (time unit)
Shutter Speed (Min)
1/60 second (time unit)
Video Modes
4K
Camera Mount Type

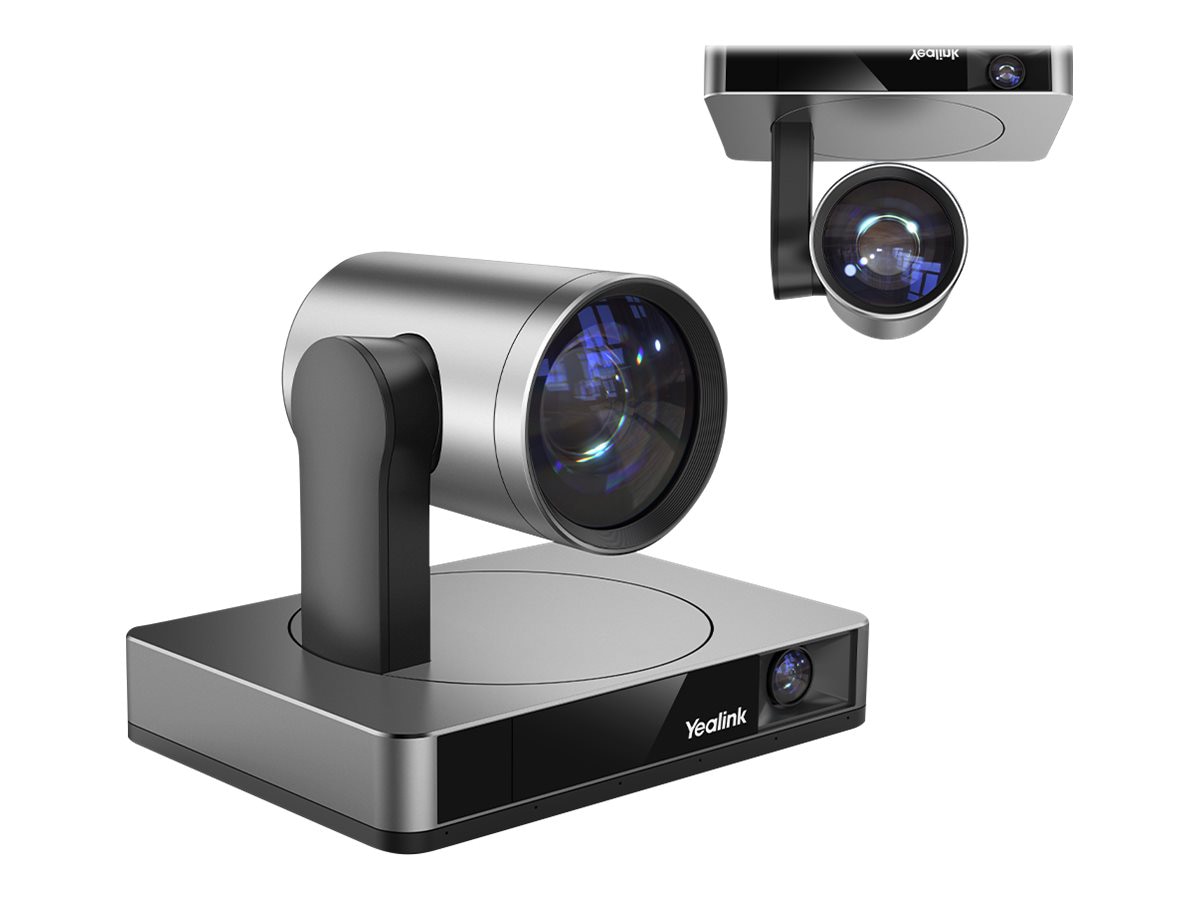

Ceiling mount, Surface mount, Wall mount
Camera Type
Conference camera
Low Voltage Power
DC 48 V
Power Device Type
Power adapter
Rated Current
0.7 ampere
Required Voltage
AC 100-240 volt
Angular Field of View (D, Min, Degree)
50
Angular Field of View (H, Min, Degree)
90
Angular Field of View (V, Min, Degree)
81
Power Device Form Factor
External
Focus Modes
Automatic
Lens Aperture
F/1.8-3.6
Max Focal Length
40.3 millimetre
Min Focal Length
3.4 millimetre
Minimum Illumination
0.1 lux - night, 0.5 lux - day
Optical Zoom
12
Video Input
Color
Features
Auto exposure control, Auto white balance, Auto-framing, Dual-eye design, Manual exposure, Manual white balance, Presenter tracking, Speaker tracking, USB audio class (UAC 1.0), USB Video Communication Protocol (UVC 1.0)
Packaged Quantity
1
Cables
1 x network cable - external - 25 ft, 1 x USB cable - external - 23 ft
Included Accessories
Mounting hardware, Remote control, Remote control batteries
Color Category
Black, Gray
ENERGY STAR Certified
No
EPEAT Compliant
No
TCO Certified
No
Service & Support Details
Limited warranty - 2 years
Limited Warranty
2 Year
