Tech specs
Brand
Zebra
Product Line
Zebra
Model

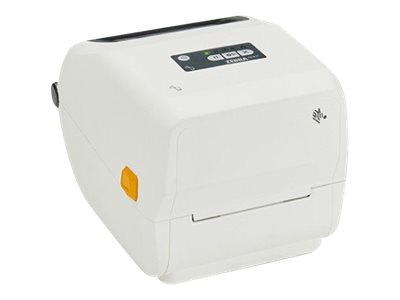

ZD421t-HC
Manufacturer
Zebra Technologies
Flash Memory Installed
512 megabyte
Memory Technology
SDRAM
RAM Installed
256 megabyte
Product Type
Print server
Interface
Bluetooth 4.1, USB 2.0, USB host, Wi-Fi(ac)
Interface Required Connections
1 x USB 2.0 - 4 pin USB Type B, 1 x USB host - 4 pin USB Type A
Max B/W Print Resolution
203 dpi
Max H-Document Size
4.4 in
Max Mono Print Speed
359.1 Inches per minute
Max Print Size
Roll (4.4 in)
Max Roll Diameter
5 inch
Max V-Document Size
39 in
Maximum Print Width
4.09 inch
Media Thickness Range
0.003 in - 0.0075 in
Min H-Document Size
0.59 in
Print Output Type
Monochrome
Print Speed
Up to 359.1 inch/min - max speed
Wireless Print Technology
Wired, Wireless
Wireless Print Technology Ready
Yes
Barcode Symbology Supported
Aztec code, Codabar, CODABLOCK, Code 11, Code 128, Code 39, Code 49, Code 93, Data Matrix, EAN-13, EAN-8, Industrial 2 of 5, Interleaved 2 of 5, ISBT 128, LOGMARS, MaxiCode, MicroPDF417, MSI, PDF417, PLANET, Plessey, Postnet, QR code, Standard 2 of 5, UPC-A, UPC-E
Media Feeders
1 x manual - 1 roll - Roll (4.4 in)
Media Size Class
Other
Media Sizes
Roll (1.5 - 11.2 cm)
Media Type
Other
Frequency
50/60 hertz
Power Device Type
Power adapter
Power Factor Correction (PFC)
Yes
Required Voltage
AC 100-240 volt
Software Type
Link-OS
Power Device Form Factor
External
Language Emulation
EPL2, Extensible Mark-up Language (XML), PDF Direct, ZBI, ZPL II
Max Operating Temperature
105.8 degree Fahrenheit
Media Type
Continuous labels, Die cut labels, Fanfold labels, Receipt paper, Tag stock, Wristband labels
Min Operating Temperature
39.9 degree Fahrenheit
Operating Humidity
10 - 90% (non-condensing)
Roll Core Diameter
0.5 in, 1 in, 1.5 in, 2 in, 3 in
Country
United States
Label Printer Features
Print Touch tag, Realtime clock, Reflective/black mark sensor, Transmissive/gap sensor
Office Machine Type
Printer
Printer Product Type
Label printer
Scanner Functionality
None
Features
Printer setup mobile app via BLE connection
Printer Functions
Printer
Packaged Quantity
1
Print Technology
Thermal Transfer
Cables
1 x USB cable
Fonts Included
16 x bitmapped ZPL II, 2 x scalable ZPL, 5 x expandable EPL2
Printer Accessories Included
2 core adapters, 2 ribbon cores
Height
7.4 inch
Weight
4.52 lbs
Width
8 inch
Depth
10.5 inch
Color
White
Color Category
White
Compliant Standards
BIS, BSMI, CCC, C-Tick, cTUVus, CU, EN 300 328, EN 301 893, EN 61000-3-2, EN 61000-3-3, EN 62311, EN55022 Class B, EN55024, FCC Class B certified, FCC Part 15.209, FCC Part 15.247, IC, ICES-003, IEC 60950-1, IEC 62368-1, INMETRO, KCC, NOM, RoHS 2011/65/EU Amendment 2015/863, RSS-247, S Mark, SABS, VCCI
Energy Star
Yes
ENERGY STAR Certified
No
EPEAT Compliant
No
TCO Certified
No
Service & Support Details
Limited warranty - 2 years
Limited Warranty
2 Year
