Tech specs
Manufacturer
Zyxel USA
Brand
ZyXEL
Product Line
Zyxel

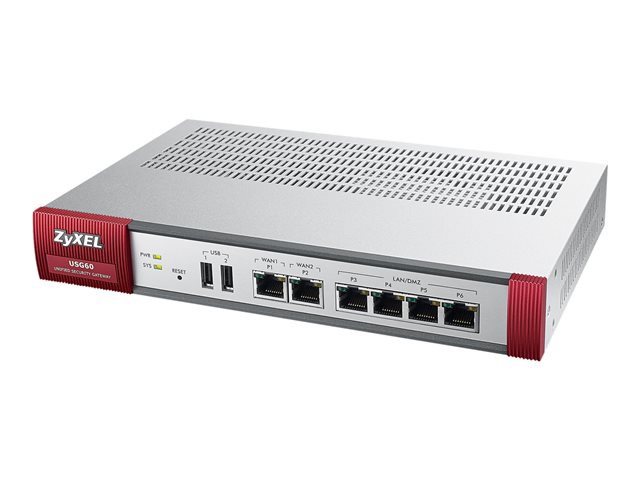

Model
USG60
Packaged Quantity
1
Performance
Antivirus throughput: 90 Mbps, Firewall throughput: 1000 Mbps, Intrusion detection and prevention throughput: 150 Mbps, Unified Threat Management (UTM) throughput: 90 Mbps, VPN throughput: 180 Mbps
Capacity
Concurrent IPSec VPN tunnels: 40, Virtual interfaces (VLANs): 16
Type
Security appliance
Form Factor
Rack-mountable
Connectivity Technology
Wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Routing Protocol
GRE, OSPF, RIP-1, RIP-2
Network / Transport Protocol
DHCP, IMAP4, IPSec, L2TP, POP3, PPPoE, SMTP
Remote Management Protocol
HTTP, HTTPS, SNMP 2c, SSH, Telnet
Status Indicators
Port status, Power, System
Features
3G USB Dongle Support, Access Control List (ACL) support, ALG support, Anti-spam protection, Antivirus analysis, Captive Portal, CAPWAP support, Content filtering, DDos attack prevention, Dead Peer Detection (DPD), DHCP client, DHCP relay, DHCP server, DHCP support, DMZ port, DoS attack prevention, Dual firmware images, Dynamic DNS server, E-mail alert, Firewall protection, Firmware upgradable, Generic Routing Encapsulation (GRE), High Availability, Intrusion Detection and Prevention (IDP), IP-MAC binding, IPSec NAT-Traversal (NAT-T), IPSec Virtual Private Network (VPN), IPv4 support, IPv6 support, LDAP support, Load balancing, Manageable, NAT support, PAT support, Quality of Service (QoS), Routing, Single Sign-On (SSO) support, SNAT support, SSH support, Stackable, Static routing, Syslog support, Tagged VLAN, Tunneling, VLAN support, VPN auto-reconnection, VPN concentrator, VPN failover, VPN load-balancing, VPN support, Wi-Fi Multimedia (WMM) support
Compliant Standards
IEEE 802.1Q, X.509
Interfaces
1 x console - DB-9, 2 x 1000Base-T - RJ-45 (WAN), 2 x USB - Type A, 4 x 1000Base-T - RJ-45 (LAN / DMZ)
Type
External power adapter
Power Consumption Operational
19 watt
License Qty
2 SSL VPN users
Encryption Algorithm
256-bit AES, 512-bit SHA-2, DES, IKE, IKEv2, MD5, PKI, SHA-1, SSL, Triple DES
Authentication Method
Active Directory, Extensible Authentication Protocol (EAP), LDAP, RADIUS, Secure Shell (SSH), X.509 certificates, XAUTH authentication
MTBF
815,463.9 Hours
Compliant Standards
ICSA Antivirus, ICSA Firewall certified, ICSA IPSec certified
Width
9.5 inch
Depth
6.9 inch
Height
1.4 inch
Weight
2.76 lbs
