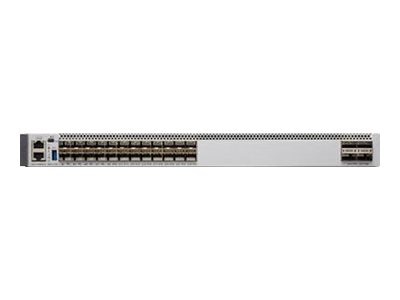

Tech specs
Brand
Cisco
Product Line
Cisco Catalyst
Model
9500
Edition
Network Advantage
Manufacturer
CISCO DS HARDWARE DIRECT
Clock Speed
2.4 GHZ
Processors Installed
1
Flash Memory Installed
16 GB
RAM Installed
16 GB
Advanced Switching
Layer 3
Compliant Standards
IEEE 802.1ae, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x
Features
Access Control List (ACL) support, Class-Based Weighted Fair Queuing (CBWFQ), CoAP support, Control plane protection (CoPP), DHCP support, Ethernet over MPLS (EoMPLS), Flexible NetFlow (FNF), Hierarchical Virtual Private LAN Service (H-VPLS), Hot Standby Router Protocol (HSRP) support, Integrated Wireshark, Layer 3 VPN (L3VPN) support, MACsec support, Maximum Likelihood Demodulation (MLD), MPLS support, Multicast Source Discovery Protocol (MSDP), NAT support, Non-Stop Forwarding (NSF), Non-Stop Routing (NSR), PAT support, Private VLAN, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Spanning Tree Protocol (STP) support, Stateful switchover (SSO), Switched Port Analyzer (SPAN), Trunking, Virtual Route Redundancy Protocol (VRRP) support, Virtual Routing and Forwarding (VRF), VLAN Double Tagging (Q-in-Q), Weighted Random Early Detection (WRED)
Form Factor (Hubs & Switches)
Rack-mountable
Jumbo Frame Support
9198 bytes
MAC Address Table Size
64K entries
Manageable
Yes
Ports
24
Product Type
Switch
Remote Management
NETCONF, RESTCONF, RMON 1, RMON 2, SNMP, SNMP 1, SNMP 2c, SNMP 3, TFTP
Routing Protocol
BGP, EIGRP, IGMP, IS-IS, MPLS, MSDP, OSPF, PIM-SM, PIM-SSM, RIP-2, RIPng, VRRP
Subcategory
Network hubs and switches
Switching Type
25 Gigabit Ethernet
Interface Provided
2 x USB 3.0, 24 x 25Gbit LAN SFP28, 4 x 100Gbit LAN
Port Quantity
24
Port Type
25 Gigabit SFP28
Frequency
50 - 60 hertz
Hot-Plug
Hot-plug
Power Provided
650 watt
Power Supplies Installed
1
Power Supplies Supported
2
Redundant Power Supply
Optional
Redundant Power Supply Supported
1+1
Software Type
Cisco IOS XE 16.8.1
Built-in Devices
RFID tag
Encryption
256-bit AES
Humidity Range Storage
5 - 95% (non-condensing)
Max Operating Temperature
104 degree Fahrenheit
Max Storage Temperature
149 degree Fahrenheit
Min Operating Temperature
32 degree Fahrenheit
Min Storage Temperature
-4 degree Fahrenheit
MTBF
336,780 Hours
Operating Humidity
5 - 90% (non-condensing)
Capacity
FNF entries: 96000, Host IPv4 routes: 90000, Host IPv6 routes: 90000, Indirect IPv4 routes: 212000, Indirect IPv6 routes: 212000, Multicast scale: 32000, QoS ACL scale: 16000, Routing table entries: 80000, Security ACL scale: 270000, Switched virtual interfaces (SVIs): 4000, VLAN IDs: 4000
Device Type
Internal power supply
Packaged Quantity
1
Performance
Forwarding rate: 1 Bpps, Switching capacity (full duplex): 1.6 Tbps
Height
1.7 inch
Height (Rack Units)
1
Weight
20.99 lbs
Width
17.5 inch
Depth
18 inch
Color Category
Gray
Compliant Standards
AS/NZS 3548 Class A, BSMI Class A, CAN/CSA-C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, EN 300 386, EN 55022 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-1, EN50082-1, EN55024, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60950-1, RoHS 5/6, TVCN 7317, UL 60950-1, VCCI Class A, VCCI V-3/2009 Class A
ENERGY STAR Certified
No
EPEAT Compliant
No
TCO Certified
No
Service & Support Details
Limited warranty - replacement - lifetime - response time: next business day, Technical support - consulting - 90 days
Limited Warranty
Lifetime Limited
